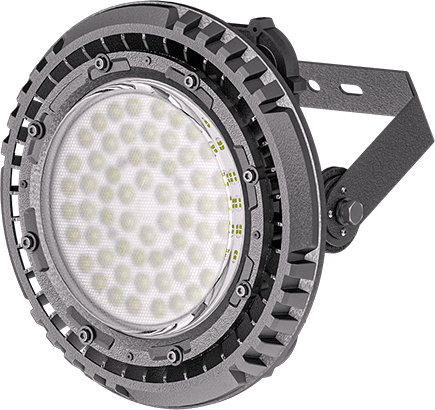

Mega Explosion-Proof High Bay — ATEX Zone 1/21, 100–200 W

Name: Mega Explosion-Proof High Bay — ATEX Zone 1/21, 100–200 W
Brand: Triton Solutions
SKU: EX100M

Article Number

EX100M / EX200M

Power Consumption

100W/200W

Lumen Output

17000LM/32000LM

Luminous Efficiency

160-170 lm/W

Kelvin

5000K

CRI

Ra80

Optics

100°

Driver

Meanwell (DALI, 1–10 V on request)

IP Rating

IP65

Impact resistance (IK)

IK10

ATEX marking

II 2G Ex db IIB T5 Gb / II 2D Ex tb IIIC T95°C Db

IECEx marking

Ex db IIB T5 Gb / Ex tb IIIC T95°C Db

Hazardous zones

Zone 1, 2 (gas) and 21, 22 (dust)

Corrosion protection

WF2

Housing

ADC12 die-cast aluminium, tempered glass, RAL 7001

Lifetime

L70B10 > 108.000h

Warranty

5 years

Operating temp

-30 °C to +48 °C

Accessories

Ex terminal box (2 end plugs, 2 free entries); M25×1.5 brass cable gland, single compression

Mega Explosion-Proof High Bay — ATEX Zone 1/21, 100–200 W

Flameproof (Ex db) LED high bay for gas and dust hazardous areas, Zone 1, 2, 21, 22. ATEX/IECEx Ex db IIB T5, IP65, IK10, tempered glass, WF2. 100 W / 17,000 lm and 200 W / 32,000 lm, 100° optic, Meanwell driver.

Mega Explosion-Proof High Bay — ATEX Zone 1/21, 100–200 W
