Linear LED systems

Triton linear LED systems made in Serbia — MAX, OPTI and SROW fixtures with modular wiring and accessories for industrial halls, warehouses and logistics.

3 series · 12 variantsVisual configurator →

Made in Serbia

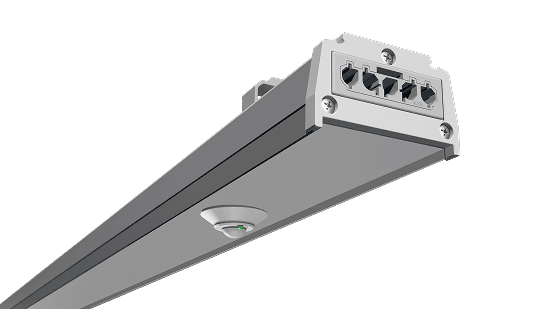

Triton MAX

Linear LED system engineered for high ceilings and large industrial spaces where maximum luminous flux and efficiency are critical. Versatile system, available with cable gland option and quick connectors (WAGO)

Size: from 1000mm to 2000mm
Current: 350–600 mA
Power output: 38–135 (W)
IP class: IP20 / IP43
Lumen output: 5880–22950 Lm
CRI: 80/90 (Ra)
Lumen per watt: up to 174 lm/W
Connector: CG / Wago

Variants — open in the configurator

BASEbase PPRO, higher flux Ssensor Eemergency battery EDemergency + dimming

Configure Triton MAX →Request a quote

Compare the series

Parameter
Size	from 1000mm to 2000mm	from 1700mm to 2000mm	from 1200mm to 1800mm
Current	350–600 mA	350–700 mA	350–500 mA
Power output	38–135 (W)	63–154 (W)	30–75 (W)
IP class	IP20 / IP43	IP20 / IP43	IP54 / IP65
Lumen output	5880–22950 Lm	10458–25410 Lm	5490–13050 Lm
CRI	80/90 (Ra)	80/90 (Ra)	≥ 80 (Ra)
Lumen per watt	up to 174 lm/W	up to 183 lm/W	up to 183 lm/W
Connector	CG / Wago	CG / Wago	Cable Gland
Variants	BASE · P · S · E · ED	BASE · S · ED · E	BASE · ED · E

Connection system

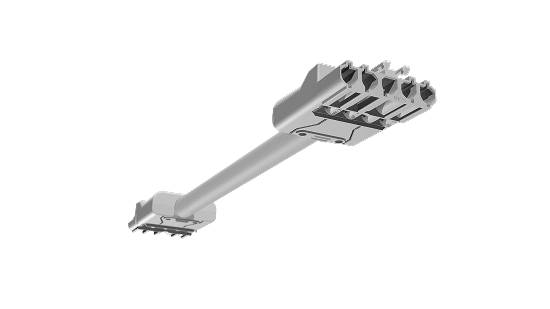

Triton X modules and Triton W cables fit every series: the sensor, surge protection and rigid joint click onto the track, and the cables come factory-wired.
