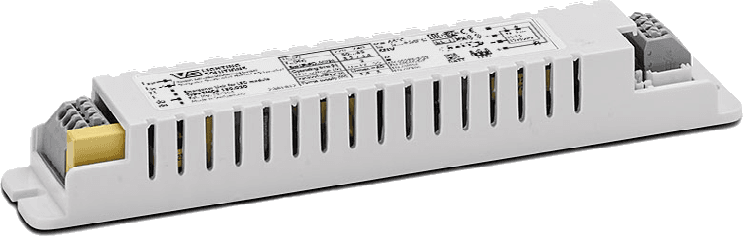

Emergency Smart DALI2 — LED Emergency Lighting Device

Article Numbers (1h)

187064 / 187066 / 187068 (55V/105V/220V output)

Article Numbers (3h)

187065 / 187067 / 187069 (55V/105V/220V output)

Casing

K67

Dimensions (LxWxH)

177 × 30 × 21.5 mm

Control Interface

DALI2 (digital addressable, with self-diagnosis)

Self-Diagnosis

EN 62034 compliant (automatic function + duration tests)

Mains Voltage

220-240 V ±10%

Mains Frequency

50-60 Hz

Output Voltage

55 V / 105 V / 220 V (model dependent)

Output Power (Emergency)

2.5-3 W

Min Lumen (Emergency)

250 lm (at 100 lm/W per LED unit)

Operating Period

1 hr or 3 hrs nominal

Battery Material

Iron Phosphate (LiFePO4)

Battery Options

3.2V/3 Ah (1h) / 3.2V/4.5 Ah (3h) — Compact or Linear shape

Charging Time

Up to 24 hrs (depending on capacity)

Ambient Temperature

5 °C to 50 °C

Protection Class

Class I and II

Ingress Protection

IP20

SELV

187064, 187065, 187067, 187068

Surge Protection

3.75 kV (187064, 187065, 187067, 187068)

Compliance

VDE 0108 / EN 50172

Standards

EN 60598-2-22, EN 61347-2-7, EN 62034, EN 62384

Status LED

Green steady (charged/self-test) / Red flash (fault) / Red intermittent (LED unit fault)

Packaging Unit

40 pcs per box, 56 boxes per pallet

Warranty

5 years

Manufacturer

Vossloh-Schwabe Deutschland GmbH

Origin

Germany

Emergency Smart DALI2 — LED Emergency Lighting Device

Vossloh-Schwabe DALI2 emergency lighting device with self-diagnosis (EN 62034) and iron phosphate batteries. 1h or 3h emergency operation. K67 casing (177×30×21.5mm). DALI2-controllable, ideal for centralised emergency lighting systems.
