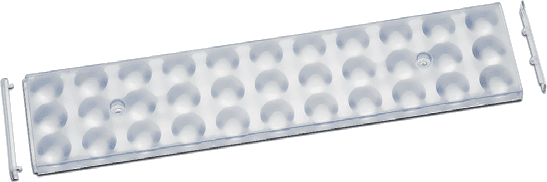

Linear Optics 3R for SMD W5.5

Article Numbers

99400/99410/99415/99401/99411/99404/99414/99402/99412/99403 (various beam + UGR/CLC + clear/matt)

Length

280mm strip; 33 single lenses

Dimensions (LxWxH)

285.4 × 62 × 11.25mm

Beam Distributions

Extra Wide 110° / Wide 80° / Medium 60° / Narrow 30° / Retail SYM / Retail ASYM

Lighting Properties

UGR (clear) or CLC (matt) — constant light colour over beam angle

Material

PMMA, clear or diffuse

Optical Efficiency

Up to 95%

Max Temperature

80 °C

Protection Rating

IP20 / IP40 (end caps) / IP54 (with gasket)

UV Resistant

Yes

Weight

80-105g depending on lens type

Compatible LEDs

3030, 2835 midpower (Seoul STW8C2PB/8C12C/9C2PB, Samsung LM301B, Nichia 757, Sunlike, Tuneable White)

Compatible Modules

W5.5 LED modules; 280mm length

Mounting

M4 flat/cylinder head screws or fixing clips; max torque 1.2 Nm

Packaging Unit

120 pcs

Manufacturer

Vossloh-Schwabe Deutschland GmbH

Origin

Germany

Vossloh-Schwabe glare-free linear optics for SMD W5.5 LED modules. 33 single PMMA lenses on 280mm strip. UGR and CLC variants. Up to 95% efficiency. For office, shop, aisle, shelf, and industrial lighting (IP20/IP54).
