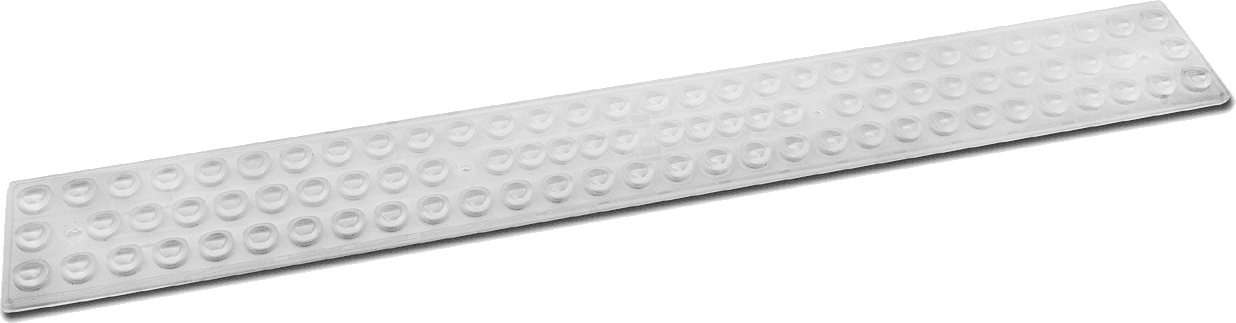

Linear Optics 3R for SMD Comfort-B

Name: Linear Optics 3R for SMD Comfort-B
Brand: Triton Solutions
SKU: 96322 (High Rack)

Article Numbers

96322 (HO High Rack 90 lenses) + standard 60-lens variants

Length

500mm strip

Lens Count

60 lenses (standard) / 90 lenses (HO version)

Dimensions (LxWxH)

500 × 62 × 4.2mm

Beam Distributions

High Rack / UGR / CLC variants

Lighting Properties

CLC (constant light colour) / UGR optimized glare reduction / E95

Material

PC (Polycarbonate)

Optical Efficiency

Up to 95% (E95 grade)

Max Temperature

100 °C

Protection Rating

IP40

UV Resistant

Yes

Luminaire Louvre Dimensions

1,500mm (perfect length for standard fixtures)

Compatible LEDs

3030, 2835 midpower (Cree JE2835, Seoul STW8C2PB/8C12C/9C2PB, Samsung LM301B, Nichia 757, Sunlike, Tuneable White)

Compatible Modules

SMD Comfort-B LED modules

Mounting

M4 flat/cylinder head screws or expanding rivets; max torque 1.2 Nm

Manufacturer

Vossloh-Schwabe Deutschland GmbH

Origin

Germany

Vossloh-Schwabe glare-free linear optics for SMD Comfort-B LED modules. 60 or 90 PC single lenses on 500mm strip. UGR and CLC variants. Up to 95% efficiency. HO version with 90 lenses for high-output industrial applications.
