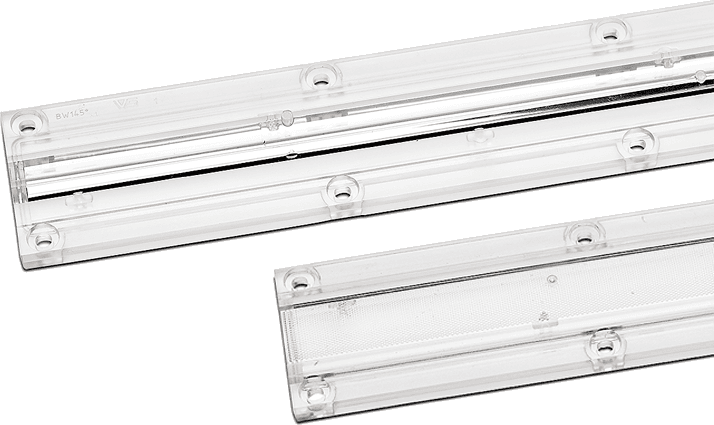

Linear Optics 1R for SMD W2 – IP65

Article Number

96700 (Wide 90°) / 96701 (Batwing 145°) / 96703 (Medium 60°)

Reference Numbers

571820 (Wide 90°) / 571821 (Batwing 145°) / 571823 (Medium 60°)

Beam Angles

Wide 90° / Batwing 145° / Medium 60°

Dimensions (LxWxH)

570 × 53 × 9.5mm (Wide), × 15mm (Batwing), × 10.5mm (Medium)

Material

PC (Polycarbonate)

Optical Efficiency

Up to 91%

Max Temperature

100 °C

Protection Rating

IP65 (incl. silicone gasket)

Impact Resistance

IK08/5J

UV Resistant

Yes

Weight

137g (Wide) / 156g (Batwing) / 139g (Medium)

Compatible LEDs

3030, 2835*, 5630* midpower (Samsung LM301B, Nichia757, Seoul STW8x, Osram Duris, Luxeon TX, Cree XPG, 5050 HighPower)

Compatible Modules

All W2 LED modules with 560mm length

Mounting

M4 screw fixing holes

Packaging Unit

84 pcs (Wide/Medium) / 70 pcs (Batwing)

Manufacturer

Vossloh-Schwabe Deutschland GmbH

Origin

Germany

Vossloh-Schwabe IP65 universal tunnel lens for SMD W2 LED modules. Microprismatic PC optics with up to 91% efficiency. Suitable for industrial, storage, and car park lighting. Available in 3 beam angles.
