Catalogue > Accessories > Ledmodules > LED Line SMD W2 Comfort Gen. 2

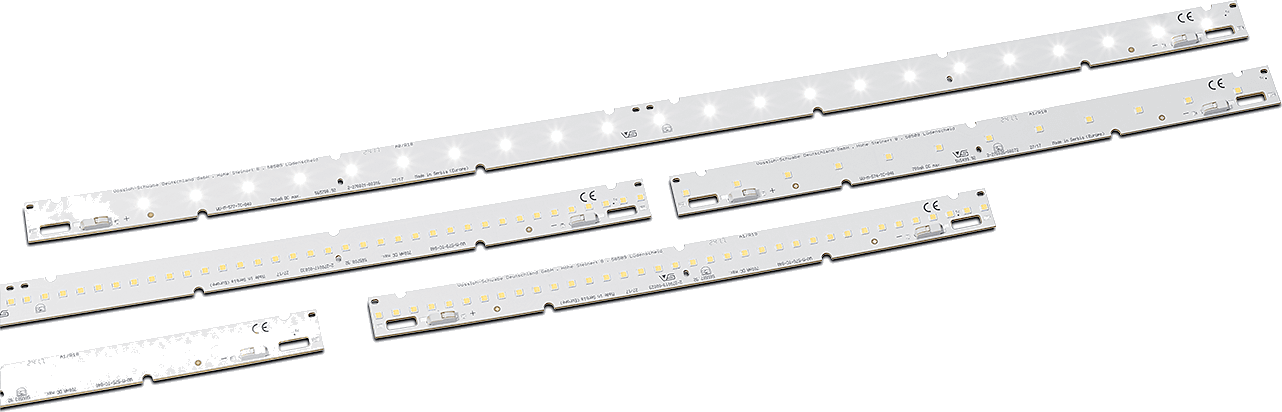

LED Line SMD W2 Comfort Gen. 2

Name: LED Line SMD W2 Comfort Gen. 2
Brand: Triton Solutions
SKU: WU-M-668

Article Number

WU-M-666 / WU-M-667 / WU-M-668 / WU-M-669 / WU-M-670 / WU-M-671 / WU-M-672 / WU-M-673

Length Options

70mm / 140mm / 280mm / 500mm / 560mm

Dimensions

20mm wide; 5 lengths (70/140/280/500/560)

Lumen Packages

700 lm / 1400 lm

Driving Current

250mA / 350mA / 500mA / 600mA / 700mA

Kelvin (CCT)

2700K / 3000K / 3500K / 4000K / 5000K / 6500K

CRI

Ra≥80 (CRI ≥90 on request)

Luminous Efficacy

Up to 195 lm/W (at tp=50°C)

Beam Angle

120°

Lifetime

L80/B10 > 72,000h

Warranty

5 years

Connection

On-board push-in terminals (top or bottom)

Driver

External constant current driver required

Standards

EN 62031, EN 62471

Manufacturer

Vossloh-Schwabe Deutschland GmbH

Origin

Germany

Vossloh-Schwabe compact LED built-in modules in 5 lengths (70/140/280/500/560mm) for office, retail, furniture, and T5/T8 retrofit. Up to 195 lm/W efficacy with 5 driving currents (250-700mA), 700/1400 lm packages.
