Catalogue > Accessories > Ledmodules > LED Line SMD Kit 3R Gen. 4

LED Line SMD Kit 3R Gen. 4

Article Number

WU-M-526-S2 (280mm) / WU-M-536-S2 (566mm)

Reference Numbers

WU-M-526: 569503-569510, 573485, 570152; WU-M-536: 569495-569502, 570156

Length Options

280mm / 566mm

Dimensions

280×55mm (526) / 566×55mm (536)

LED Count

33 (526) / 66 (536)

Driving Current

150mA / 200mA / 350mA / 500mA / 700mA

Voltage DC

29.4-66.4V (depending on type and current)

Power Consumption

4.4W-46.5W (range across types and currents)

Max Peak Current

1200 mA

Kelvin (CCT)

2700K / 3000K / 3500K / 4000K / 5000K / 6500K

CRI

Ra≥80 (CRI ≥90 on request)

Luminous Flux Range

825-7660 lm (depending on length, current, CCT)

Luminous Efficacy

Up to 204 lm/W (at tp=50°C)

Beam Angle

120°

Colour Tolerance

3-step MacAdam

Lifetime

L80/B10 > 54,000h (across all currents, tp=40-75°C)

Warranty

5 years

Operating Temperature

-20°C to +75°C (at tc point)

Storage Temperature

-20°C to +70°C

Connection

On-board push terminals (WAGO 2060 top / WAGO 2070 bottom)

Driver

External constant current driver required

Mounting

M4 screws, max torque 1.2 Nm

Standards

EN 62031, EN 62471, IEC/TR 62778 risk group 1

MOQ (Packaging Unit)

42 pcs

Manufacturer

Vossloh-Schwabe Deutschland GmbH

Origin

Germany

Vossloh-Schwabe LED built-in modules in 2 lengths (280mm / 566mm) for office, retail, and T5/T8 retrofit. Up to 204 lm/W efficacy with 5 driving currents (150-700mA) and 6 CCT options (2700K-6500K).

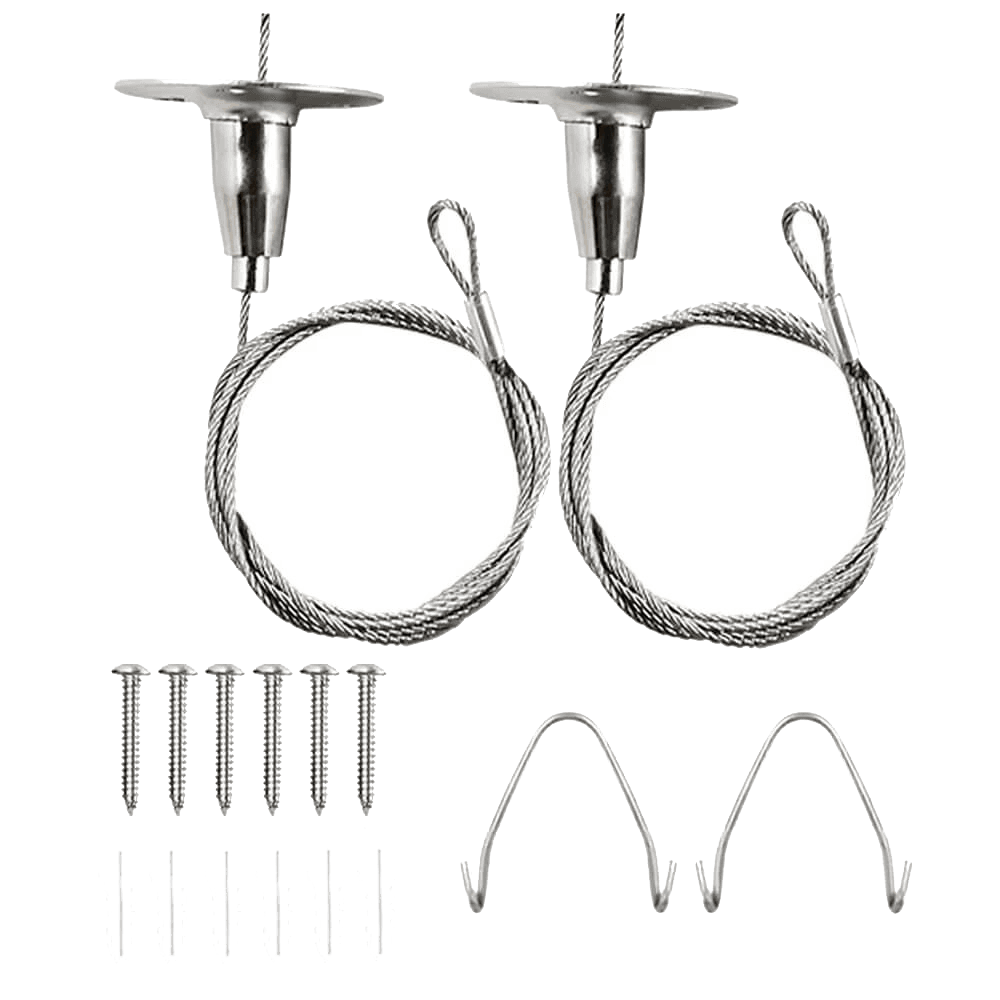

Linear Mounting Brackets
