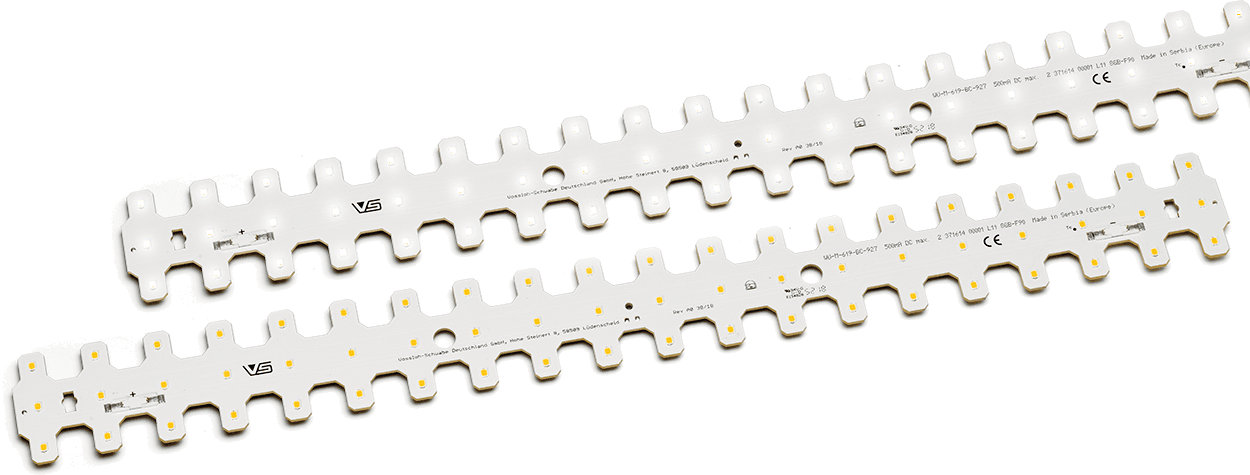

LED Line SMD Comfort-B 3R Gen. 3

Article Number

MLC SC 3R/FB B/60/840 G3 (Ref. 573924)

Reference Numbers

573923 (3000K/80), 573924 (4000K/80), 573925 (5000K/80), 573926 (6500K/80), 573927 (3000K/90), 573928 (4000K/90), 573929 (5000K/90), 573930 (6500K/90)

Dimensions

493 x 49 x 6.4 mm

Length

493mm

LED Count

60 LEDs

Driving Current

150mA / 200mA / 250mA / 350mA / 500mA / 600mA

Typical Voltage DC

52.3V / 52.8V / 53.3V / 54.2V / 55.5V / 56.2V (per current)

Power Consumption

7.8W / 10.6W / 13.3W / 19.0W / 27.7W / 33.7W

Max Repetitive Peak Current

1440 mA

Kelvin (CCT)

2700K / 3000K / 3500K / 4000K / 5000K / 6500K

CRI

Ra>80 (standard) / Ra>90 (premium)

Luminous Flux Range

1220-6035 lm (depending on current, CRI, CCT)

Luminous Efficacy

Up to 209 lm/W (at tp=50°C, 150mA, CRI 80)

Lifetime

L80/B10 > 93.000 h (at tp=50°C, all currents)

Warranty

5 years

Operating Temperature

-20°C to +80°C (at tc point)

Storage Temperature

-20°C to +75°C

Connection

On-board push terminal (WAGO 2070)

Driver

External constant current driver required (not included)

Mounting

M4 screws (max torque 1.2 Nm); use plastic washers if no optics

Standards

EN 62031, EN 62471, IEC/TR 62778 risk group 1

MOQ (Packaging Unit)

100 pcs

Manufacturer

Vossloh-Schwabe Deutschland GmbH

Origin

Germany

Vossloh-Schwabe LED built-in module (493x49x6.4mm) for integration into luminaires. Up to 209 lm/W efficacy with 6 driving current options (150-600mA), 6 CCT (2700K-6500K), and CRI 80/90 versions. T5/T8 retrofit, office & industrial…
