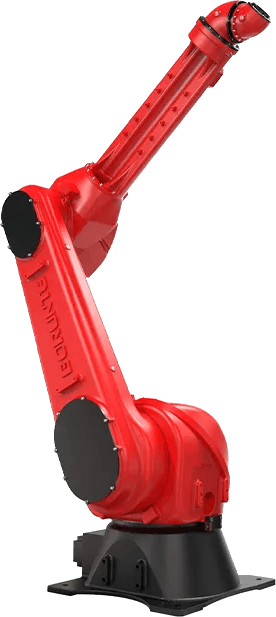

6-Axis Spraying Robot BRTIRSE2013A

Axes
6
Reach
2000 mm
Payload
13 kg
Repeatability
±0.5 mm
Wrist protection
IP65
Body protection
IP68
Drive
Servo motors
Reducers
RV + planetary
Wiring
Hollow end-of-arm + partial internal
Primary application
Spraying, coating, accessory handling
6-Axis Spraying Robot BRTIRSE2013A

6-axis industrial spraying robot with 2000 mm reach and 13 kg payload. IP65 wrist / IP68 body, hollow end-of-arm wiring for spray gun integration, ±0.5 mm repeatability. Servo motors with RV and planetary reducers.

About 6-Axis Spraying Robot BRTIRSE2013A

6-Axis Spraying Robot BRTIRSE2013A: reach, payload and protection details

Powered by Geoffy
What is this for?

Key features

  • Six-axis robot configuration
  • 2,000 mm reach
  • 13 kg payload
  • Servo-motor drive
  • Hollow end-of-arm and partial internal wiring

The 6-Axis Spraying Robot BRTIRSE2013A covers the core information needed to identify a robot for spraying, coating and accessory-handling applications. Its six axes, 2,000 mm reach and 13 kg payload describe the main operating envelope supplied in the data, while the drive, reducer, wiring and protection details support technical review.

Common questions
What repeatability specification is listed for the 6-Axis Spraying Robot BRTIRSE2013A?

The 6-Axis Spraying Robot BRTIRSE2013A is listed with repeatability of ±0.5 mm. This is the precise repeatability value provided in the product data. The page does not state the measurement standard, test conditions or whether the figure applies across the full reach, so those points require confirmation if repeatability is a critical process criterion.

What protection ratings and wiring arrangement does this robot have?

The 6-Axis Spraying Robot BRTIRSE2013A has IP65 wrist protection and IP68 body protection. Its wiring is described as hollow end-of-arm plus partial internal wiring. These are the supplied protection and cable-routing details. The data does not define the relevant test conditions, ingress materials or installation limitations, so those technical points should be verified for the proposed spraying or coating setup.

Specification

The 6-Axis Spraying Robot BRTIRSE2013A has six axes, a 2,000 mm reach, a 13 kg payload and ±0.5 mm repeatability. It uses servo motors with RV plus planetary reducers. Protection is listed as IP65 at the wrist and IP68 for the body. Wiring is hollow at the end of arm and partially internal.

FieldValue
DriveServo motors
ReducersRV + planetary
WiringHollow end-of-arm + partial internal
Axes6
Reach2000 mm
Payload13 kg
Repeatability±0.5 mm
Wrist protectionIP65
Body protectionIP68

The 6-Axis Spraying Robot BRTIRSE2013A provides a defined technical profile rather than an unspecified general-purpose robot description. The key figures are six axes, 2,000 mm reach, 13 kg payload and ±0.5 mm repeatability. Its component details include servo motors, RV plus planetary reducers, partial internal wiring and separate wrist and body IP ratings.

Why this product?

The 6-Axis Spraying Robot BRTIRSE2013A brings application information and core engineering specifications together for technical assessment. Readers can review its stated spraying, coating and accessory-handling uses alongside reach, payload, repeatability, drive, reducer, wiring and protection data.

  • The product data names three primary applications: spraying, coating and accessory handling.
  • Six axes, 2,000 mm reach and 13 kg payload provide clear comparison points.
  • Servo motors and RV plus planetary reducers are identified as core components.
  • Separate IP65 wrist and IP68 body ratings are provided.
  • The wiring arrangement is specified as hollow end-of-arm plus partial internal.
