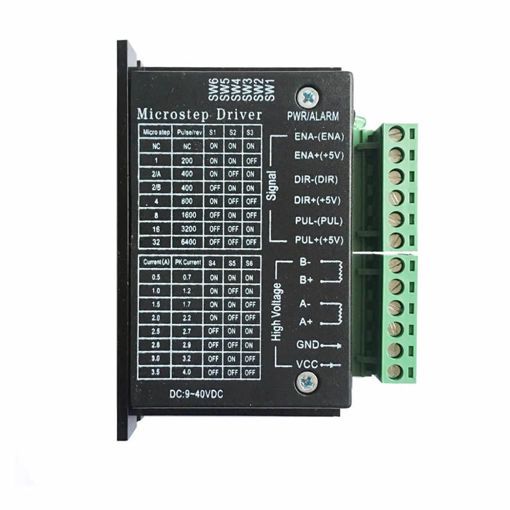

Stepper Motor Driver TB6600 4.0A NEMA 17/23

Name: Stepper Motor Driver TB6600 4.0A NEMA 17/23
Brand: Triton Solutions
SKU: TB6600

Chip

Toshiba TB6600 (SMD)

Driver type

2-phase bipolar

Output current

0.5–4.0 A (peak), adjustable in 8 steps

Input voltage

9–42 V DC

Microstepping

1/1, 1/2, 1/4, 1/8, 1/16, 1/32

Isolation

Optical isolation on PUL/DIR/ENA

Compatible motors

NEMA 17, NEMA 23

Protection

Over-current, over-temperature

Primary applications

CNC, 3D printers, hobby/prototype automation

Stepper Motor Driver TB6600 4.0A NEMA 17/23

Economical 2-phase bipolar stepper motor driver based on the Toshiba TB6600 chip. Up to 4.0 A output, 9–42 V DC input, microstepping 1/1 to 1/32. Compatible with NEMA 17 and NEMA 23 motors for CNC, 3D printers and small automation.
