C-Hallen Trollhatan

ByMateja Cveticanin
Industrial LED Lighting
Sweden
5 minutes

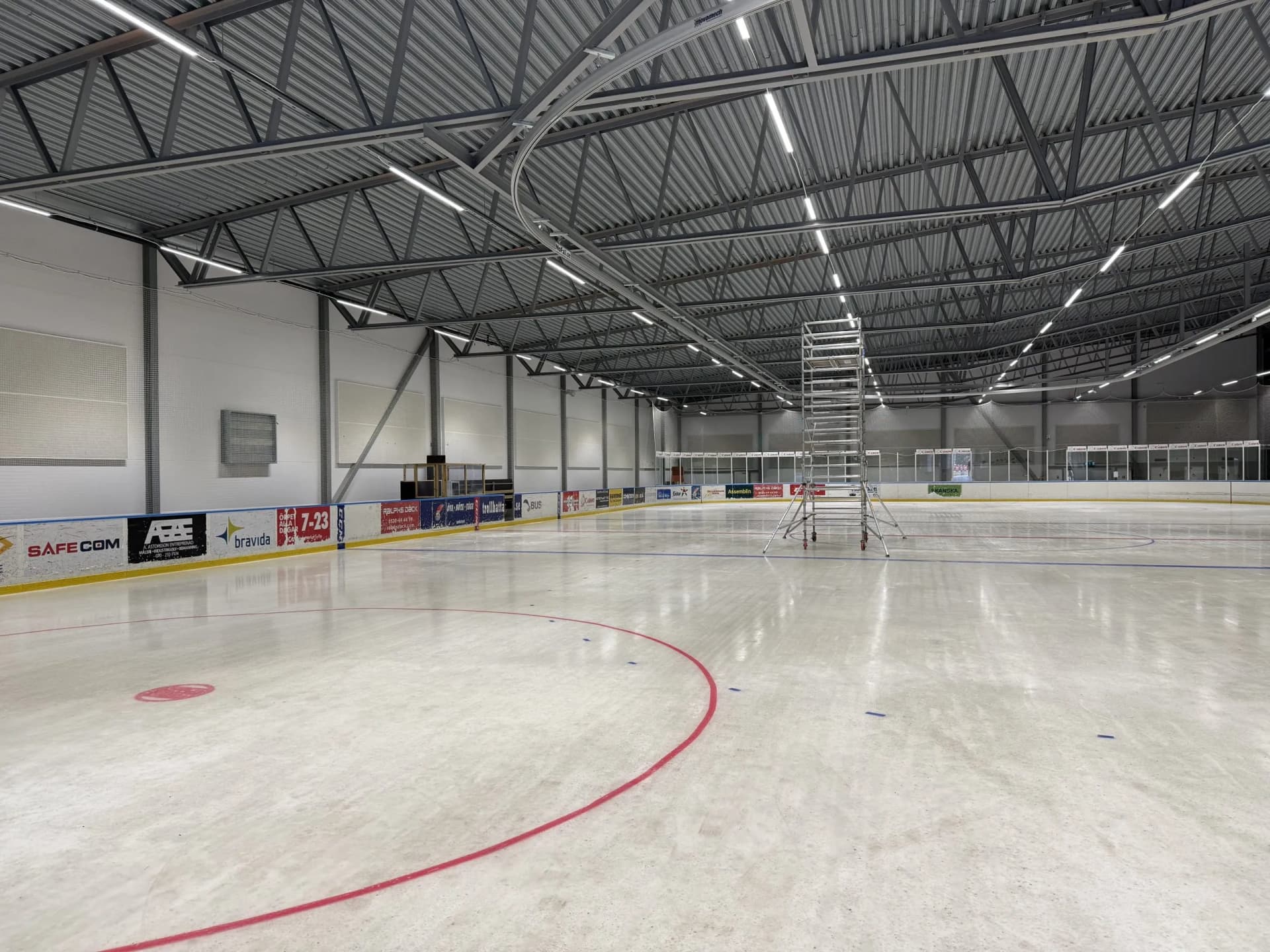

C-Hallen Trollhatan

In collaboration with our partner Granitor, we were tasked with delivering a sophisticated, smart lighting solution for a hockey rink in Sweden. The goal was to provide high-performance illumination for the ice while creating a safe and distinctly control

THE CHALLENGE

The Challenge

The project required a multi-functional lighting system capable of differentiating between the main playing area and the public walking zones. The solution needed to provide powerful, high-quality light for sporting action and separate, lower-level lighting for the walkways. Furthermore, it had to seamlessly integrate a reliable emergency lighting system and ensure the entire installation was protected from potential power grid instabilities.

THE SOLUTION

The Solution

We deployed six lines of our versatile TritonMAX linear fixtures, creating a comprehensive system that addressed every project requirement. The installation’s success was built on several key features:

  • Dual-Zone Smart Control: Leveraging the B2L mesh network, we created two distinct lighting zones. Movement detected in the outer walking areas triggers only those fixtures to an energy-efficient 30% brightness. However, any movement inside the hockey rink instantly illuminates the entire hall to 100%.
  • High-Performance Illumination: At full power, the system delivers an impressive 900 lux across the ice with a high uniformity of approximately 0.80, creating perfect visibility for players and spectators alike.
  • Integrated Emergency Lighting: We utilized our TritonMAX-Emergency fixtures, which function as part of the standard lighting system during normal operation. In the event of a power failure, their integrated emergency drivers automatically activate, ensuring safety.
  • Robust System Protection: To safeguard the installation, we equipped every lighting line with our TX-P surge protectors, providing solid protection against potential power surges.
PRODUCTS USED

Products Used

  • TritonMAX Series: The primary fixture providing powerful and efficient illumination.
  • TritonMAX-Sensor: Fixtures with integrated B2L sensors to manage the smart control zones.
  • TritonMAX-Emergency: Luminaires with built-in emergency functionality.
  • TX-P Surge Protectors: Deployed for system-wide grid protection.

Vossloh-Schwabe Components::

  • Sensor XL (186800)
  • DALI-2 Driver 90W (187338)
  • DALI-2/B2L Driver 120W (187031)
  • Emergency Driver (186810)
  • LED Modules (572173)
  • 90° Optics (569527)
  • Power Surge Protector 20kV (142752)
RESULTS

By leveraging the advanced capabilities of Vossloh-Schwabe’s B2L technology and our versatile TritonLED fixtures, we delivered a lighting system for Tingstad that is not only highly energy-efficient but also intelligent, adaptable, and future-proof.

More from Triton

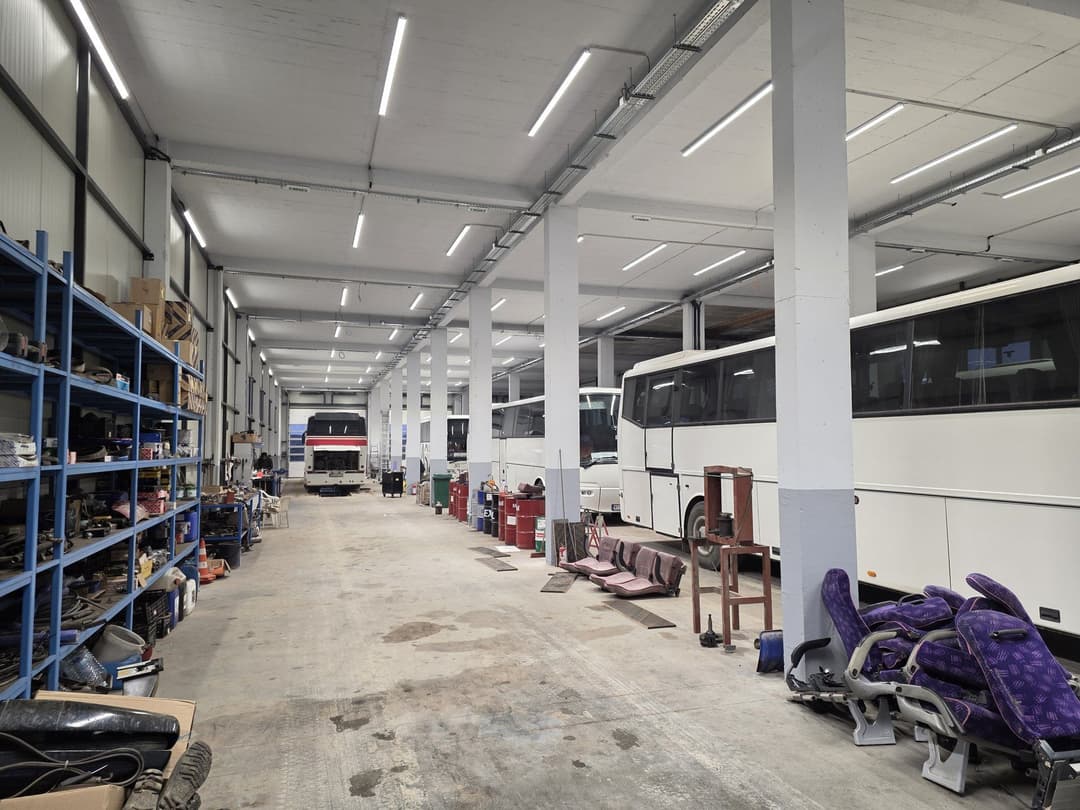

AS Tours Buswerkstatt — Triton MAX LED-Beleuchtung für die Reisebus-Reparatur

AS Tours Buswerkstatt — Triton MAX LED-Beleuchtung für die Reisebus-Reparatur

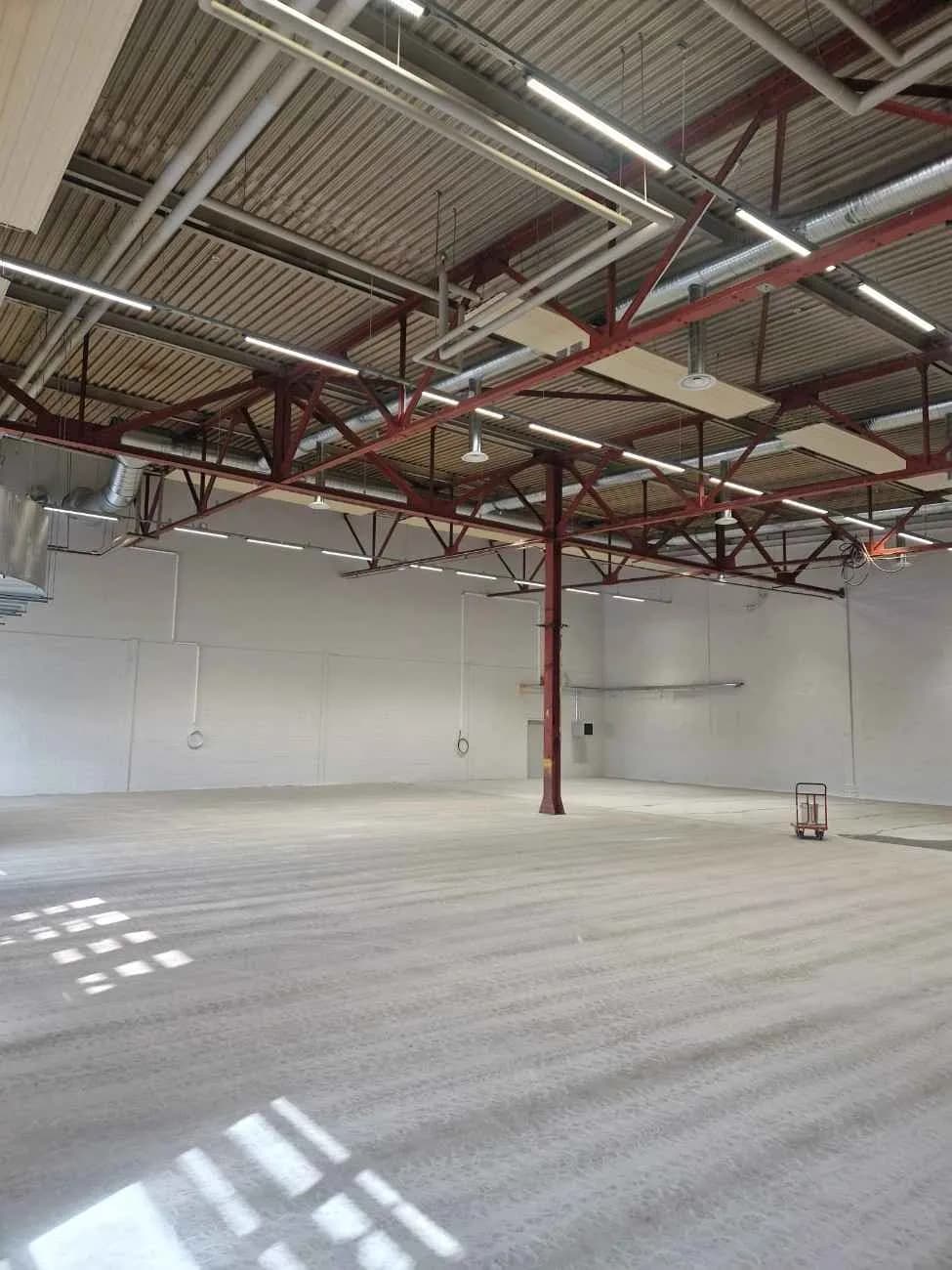

Appelgrens El – SWEDMAINT Industrial Lighting Upgrade
